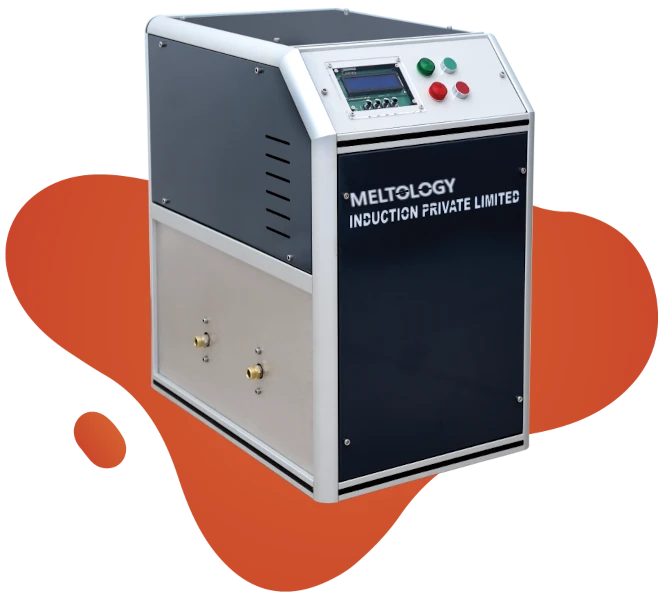

High Temperature Melting Induction Furnace
Excellent High Temperature Melting Induction Furnace
This is multi-purpose induction melting furnace for variety of applications. Any cunductive metal with melting points up to 2500 Degree Celcius can be melted in this machine. It is best suited for percious metals like Rhodium, Ruthenium, Iridium and other PGM metals. It works well with Ceramic and graphite both the types of crucibles. This product is very useful for catalyst manufacturers and precious metal alloy manufacturers.
Technical Specifications
| # | Spec Name | Spec Value |
|---|---|---|
| 1 | Power Supply | Single Phase / 3 Phase |
| 2 | Voltage | 230V AC / 440V AC |
| 3 | Power Rating | 20KW |
| 4 | Crucible Size | 1Kg Metal (Size available as per requirements) |
| 5 | Crucible Variant | Ceramic & Graphite |
| 6 | Maximum Temperature | 2500 Deg Celcius |
| 7 | Melting Time | 1 to 2 Minutes |
| 8 | Cooling Water Temp. | Below 40 Deg C |
| 9 | Required Water Pressure | 3 to 4 Bar |
| 10 | Maximum Water Flow | 3 to 4 Litrs / Min |
| 11 | Equipment Dimensions | 26 x 18 x 30 (Inch) |
| 12 | Equipment Weight | 40 - 50 Kg |
