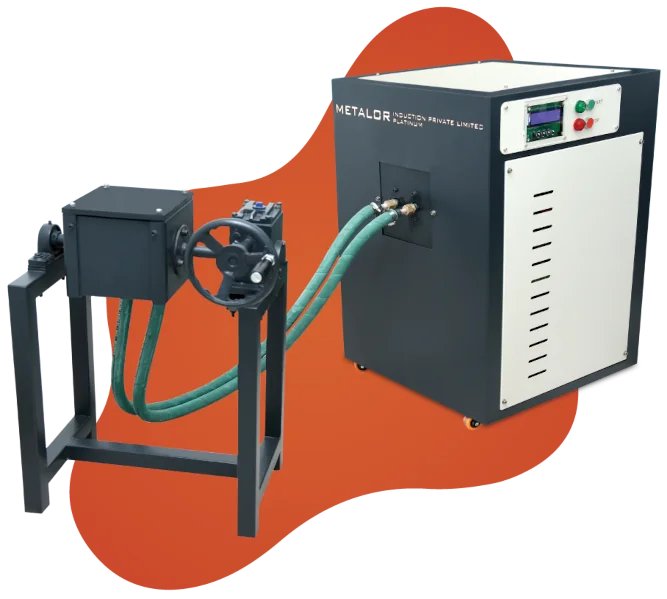

Platinum Melting Induction Furnace
Best Platinum Melting Induction Furnace
Platinum Melting Induction furnace is one of the best product from Metalor Induction Pvt. Ltd. This product is available with variable crucible sizes as per customer requirements. This furnace also supports Graphite and Ceramic Crucibles. Fast and economic operations makes it number one choice for customers. All the PGM metals with melting points below 1900 Deg C can be melted in this furnace. It is widely used for industries working for PGM metals.
Technical Specifications
| # | Spec Name | Spec Value |
|---|---|---|
| 1 | Power Supply | Single Phase / 3 Phase |
| 2 | Voltage | 230V AC / 440V AC |
| 3 | Power Rating | 10KW - 15KW |
| 4 | Crucible Size | 1Kg Platinum (Size available as per requirements) |
| 5 | Crucible Variant | Ceramic & Graphite |
| 6 | Maximum Temperature | 1900 Deg Celcius |
| 7 | Melting Time | 1 to 2 Minutes |
| 8 | Temperature Measurement | K-Type (Automatic) |
| 9 | Cooling Water Temp. | Below 35 Deg C |
| 10 | Required Water Pressure | 3 Bar |
| 11 | Maximum Water Flow | 3 Liters / Minute |
| 12 | Equipment Dimensions | 24 x 24 x 32 (Inch) |
| 13 | Equipment Weight | 50 - 60 Kg |
